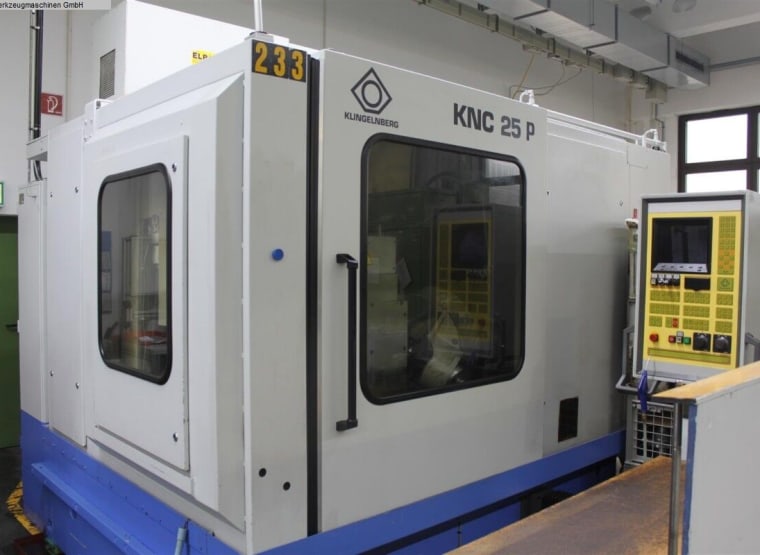

KLINGELNBERG KNC 25 P Curved Gearing Bevel Gear Milling Machine

DESCRIPTION Wheel diameter - max. 275 mm wheel width 150 mm Module - max. 6 Module - min. 1.5 Workpiece diameter - max. 275 mm Tooth width max. 5.5 mm Helix angle 0 - 60° Number of teeth 5 - 120 Transmission ratio min. 1:1 Transmission ratio max. 1:10 Cutter drive motor 20 kW Workpiece drive 14.5 kW Total power requirement 62 kVA Machine weight approx. 12 t Space requirement approx. 4.7 x 4.387 x 2.45 m Tool spindle (D axis) - Workpiece spindle speed (infinitely variable) 60 to 350 rpm Tool positioning axis (E axis) - Swivel range 0 to 360° - Swivel speed max. 19.5°/s Workpiece spindle (B-axis) - Mounting diameter outer cone (1:4) 140 mm - Standard version inner cone (1:20) 99.218 mm - Workpiece spindle speed max. 300 rpm - Workpiece spindle passage 90 mm Workpiece positioning axis (Y-axis) - Travel 870 mm - Travel speed max. 4.5 m/min rolling axis (A-axis) - Swivel range 315° - Swivel speed max. 40°/s Axis offset (Z-axis) - Travel range max. +/- 50 mm - Travel speed max. 0.657 m/min Workpiece swivel axis (C-axis) - Pivoting range -8.5 to 98° - Swivel speed max. 21.5°/s Milling depth axis (X-axis) - Travel -25 to 640 mm - max. travel speed 6 m/min Machine distance (V axis) - Travel 150 mm - Travel speed max. 1.6 m/min
