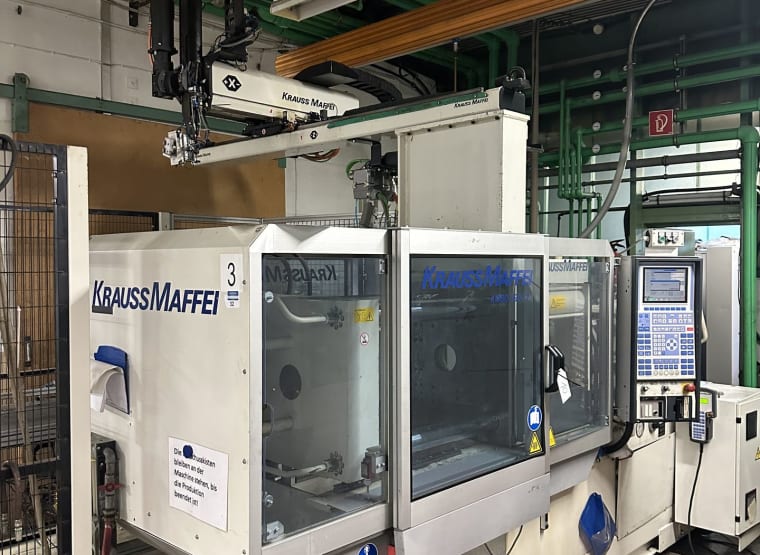

KRAUSS-MAFFEI 80-390 C2 Injection molding machine
lot no. 10
1,900 €
1 Bid 9 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
01/02/24 10:09
Closing time
1,900 €
Current highest bid
Item details
- Name
- KRAUSS-MAFFEI 80-390 C2 Injection molding machine
- Item number
- 883478
- Manufacturer
- KRAUSS-MAFFEI
- Model / Type
- 80-390 C2
- Year of manufacture
- 2005
- Item available from
- immediately
- Item condition
- Location
-
Germany, 73529 Schwäbisch Gmünd
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 500.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Schwäbisch Gmünd, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- Approx. Onsite Dimension. (l x w x h)
- 6,000 x 3,000 x 4,000 mm
- weight approx.
- 5,000 kg
Item description
"- Machine number: 61006255
- Operating voltage: 400 V
- Frequency: 50 Hz
- Rated current: 96 A
- Control: KRAUSS MAFFEI
- Screw diameter: 40 mm
- Closing force: 80 to
- Plate dimensions: 610 x 610 mm
- Incl. handling system from the manufacturer KRAUSS MAFFEI
- Projection: approx. 2000 mm
- As well as a conveyor belt
- Bandwidth: approx. 600 mm
- Tool opening path: 55 kN
- Driving force of the movable tool platen:
- Opening: 31 kN
- Closing: 20 kN
- Clear width between the columns: 405 x 405 mm
- Tool opening path: 500 mm
- Tool installation height: 250 mm
- Opening width: 750 mm
- Hydraulic ejector stroke: 150 mm
- Injection unit: 390
- Spray pressure: 1860 bar
- Stroke volume: 204 cm³
The system can be transported on a normal standard truck."
- Operating voltage: 400 V
- Frequency: 50 Hz
- Rated current: 96 A
- Control: KRAUSS MAFFEI
- Screw diameter: 40 mm
- Closing force: 80 to
- Plate dimensions: 610 x 610 mm
- Incl. handling system from the manufacturer KRAUSS MAFFEI
- Projection: approx. 2000 mm
- As well as a conveyor belt
- Bandwidth: approx. 600 mm
- Tool opening path: 55 kN
- Driving force of the movable tool platen:
- Opening: 31 kN
- Closing: 20 kN
- Clear width between the columns: 405 x 405 mm
- Tool opening path: 500 mm
- Tool installation height: 250 mm
- Opening width: 750 mm
- Hydraulic ejector stroke: 150 mm
- Injection unit: 390
- Spray pressure: 1860 bar
- Stroke volume: 204 cm³
The system can be transported on a normal standard truck."
Automatic translation
Auction details
- lot no.
- 10
- Documents
- Spec. Auction Terms
- Inspection
-
The exact location is available on request.
73235 Weilheim Teck / 73529 Schwäbisch Gmünd, Germany
- address on request -
Viewing by prior appointment only!
- Pick up
-
Monday, 12/02/2024 to
Friday, 16/02/2024, from 08:00 to 16:00
Monday, 19/02/2024 to
Wednesday, 21/02/2024, from 08:00 to 16:00
