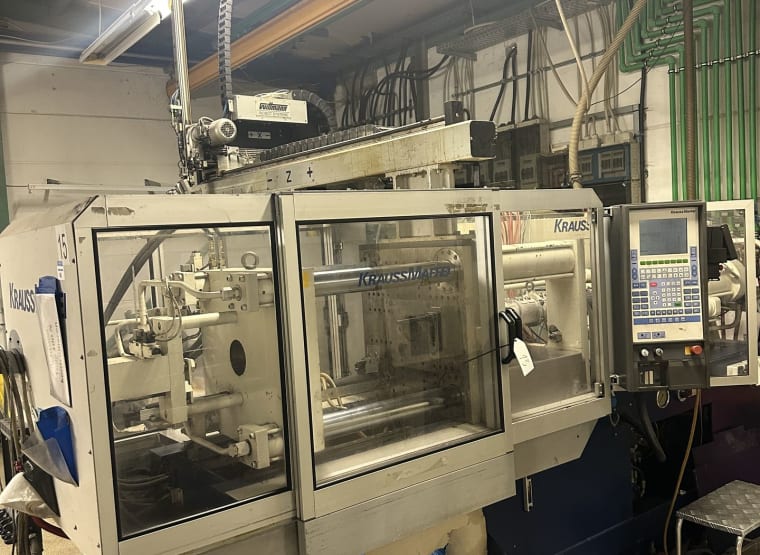

KRAUSS-MAFFEI KM 80-460 C1 Injection molding machine
lot no. 13
750 €
1 Bid 4 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
01/02/24 10:12
Closing time
750 €
Current highest bid
Item details
- Name
- KRAUSS-MAFFEI KM 80-460 C1 Injection molding machine
- Item number
- 883481
- Manufacturer
- KRAUSS-MAFFEI
- Model / Type
- KM 80-460 C1
- Year of manufacture
- 1995
- Item available from
- immediately
- Item condition
- Location
-
Germany, 73529 Schwäbisch Gmünd
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 400.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Schwäbisch Gmünd, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- Approx. Onsite Dimension. (l x w x h)
- 4,000 x 3,000 x 3,500 mm
- weight approx.
- 5,000 kg
Item description
"- Operating voltage: 400 V
- Frequency: 50 Hz
- Rated current: 66 A
- Control: KRAUSS MAFFEI
- Closing force: 800 kN
- Tool opening force: 78 kN
Driving force of the movable mold platens:
- Opening: 40 kN
- Closing: 40 kN
- Size of the tool platen: 610 x 610 mm
- Clear width between the columns: 405 x 405 mm
- Tool opening path: max. 500 mm
- Tool installation height: at least 250 mm
- Opening width: max. 750 mm
- Hydraulic ejector stroke: 150 mm
- Injection unit: 460
- Screw diameter: 40 mm
- Spray pressure: 2112 bar
- Stroke volume: 217 cm³
- Molded part weight in horsepower: max. 195 g
- Injection flow standard: 118 cm³/s
- Screw speed standard: 294 rpm
- Incl. handling system from the manufacturer WITTMANN
Travel paths:
- Z: 2000 mm
- Y: 800mm
- X: 500mm
The machine can be transported on a normal standard truck."
- Frequency: 50 Hz
- Rated current: 66 A
- Control: KRAUSS MAFFEI
- Closing force: 800 kN
- Tool opening force: 78 kN
Driving force of the movable mold platens:
- Opening: 40 kN
- Closing: 40 kN
- Size of the tool platen: 610 x 610 mm
- Clear width between the columns: 405 x 405 mm
- Tool opening path: max. 500 mm
- Tool installation height: at least 250 mm
- Opening width: max. 750 mm
- Hydraulic ejector stroke: 150 mm
- Injection unit: 460
- Screw diameter: 40 mm
- Spray pressure: 2112 bar
- Stroke volume: 217 cm³
- Molded part weight in horsepower: max. 195 g
- Injection flow standard: 118 cm³/s
- Screw speed standard: 294 rpm
- Incl. handling system from the manufacturer WITTMANN
Travel paths:
- Z: 2000 mm
- Y: 800mm
- X: 500mm
The machine can be transported on a normal standard truck."
