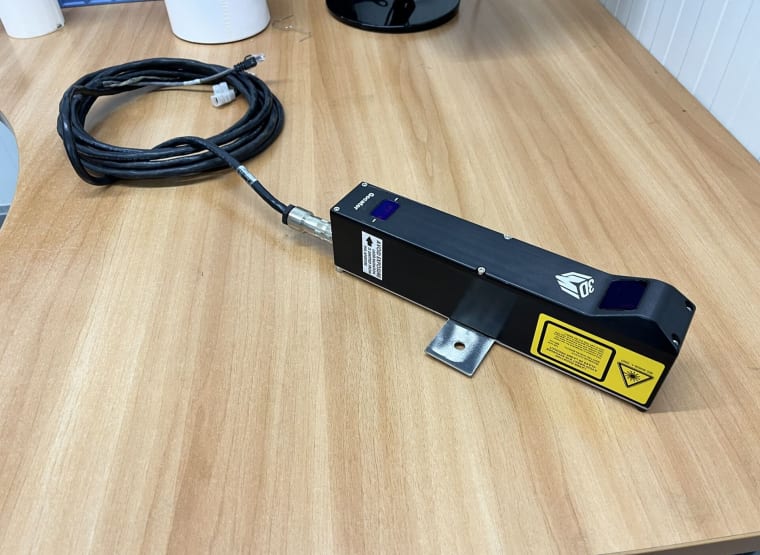

LMI TECHNOLOGIES GOCATOR 2180D - 3R - R - 01 - T Portable 3D Laser Scanner

LMI TECHNOLOGIES GOCATOR 2180D - 3R - R - 01 - T Portable 3D Laser Scanner
no. 00070985

Resolution X (mm): 0.75
Resolution Z (mm): 0.092
Field of View (mm): 390 - 1260
Clearance Distance (mm): 350
Measurement Range (mm): 800

Data Points / Profile: 640
Linearity Z (+/- % of MR): 0.04
Resolution Z (mm): 0.092- 0.488
Resolution X (mm) (Profile Data Interval): 0.75 - 2.20
Repeatability Z (µm): 12
Clearance Distance (CD) (mm):350
Measurement Range (MR) (mm): 800
Field of View (FOV) (mm): 390 - 1260
Laser Classes: 2, 3R
Dimensions (mm): Top Mount 49x75x272

Scan Rate: Approximately 170 Hz to 5000 Hz
Interface: Gigabit Ethernet
Inputs: Differential Encoder, Laser Safety Enable, Trigger
Outputs: 2x Digital output, RS-485 Serial (115 kBaud)
Input Voltage (Power): +24 to +48 VDC (13 Watts); Ripple +/- 10%
Housing: Gasketed aluminum enclosure, IP67
Operating Temperature: 0 to 50°C
Storage Temperature: -30 to 70°C
Vibration Resistance: 10 to 55 Hz, 1.5 mm double amplitude in X, Y and Z directions, 2 hours per direction
Shock Resistance: 15 g, half sine wave, 11 ms, positive and negative for X, Y and Z directions

Scanning Software
Browser-based GUI and open source SDK for configuration and real-time 3D visualization. Open source SDK, native drivers, and industrial protocols for integration with user applications, third-party image processing
applications, and PLCs
