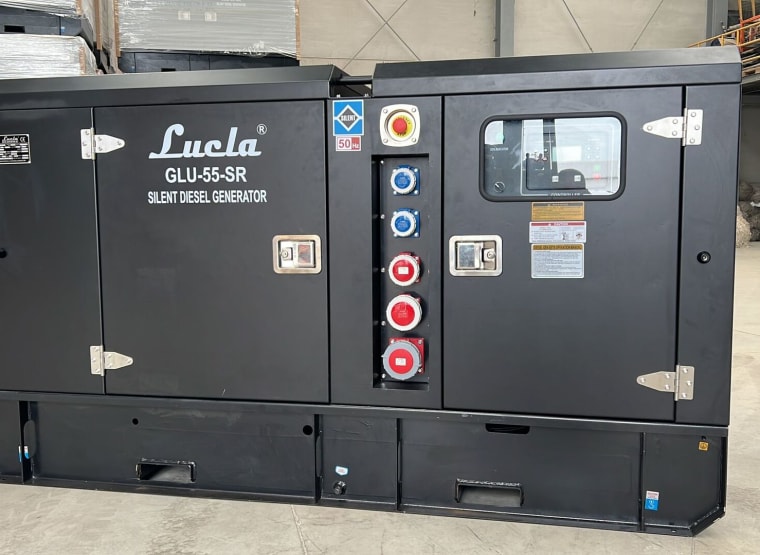

LUCLA GLU-55-SR Diesel Electric Generator

• Power: 50kva
• Voltage: 233/400v
• Rated Current: 72,2a
• Max. sound level: ≤78

Engine:

• Model: N4105ZDS
• Air Intake system: Turbocharged
• Nº cylinders: 4
• rated speed: 1500 r/min
• Rated Power: 56 kw
• Intellite governor type: Mechanical
• Start Motor: 24v
• exhaust system:
• exhaust gas flow 198 m3/min
• Gas temp: ≤600
• Max. back pressure: 3kpa

Air Intake System:

• Intakepipe diameter: 60 mm
• Fuel System:
• Load prime power: 10 l/h
• Fuel tank capacity: 120 l

Lubrication System:

• Total system oil capacity 13 l
• Oil consumption: ≤2,4 g/kw.h
• Min oil pressure: 1,5 MPa

Cooling System:

• total coolant capacity: 18,5 l
• Thermostat 75-95ºC
• Max. top tank temperature: 105ºC

Alternator - Lucla

• Model LU224D
• Phase: 3
• Voltage 230/400v
• Frequency: 50 Hz
• Prime power: 50kva

Controller - ComAp
Model Intelilite AMF 25 comap

Protective Functions: oil pressure

• HIght water temperature
• High Engine temperatuve and overspeed
• Voltage regulator frequency regulator
• Emergency stop
• Auto starting transfer

ATS is incorporated in the machine itself, which is for the generator to start by itself when the lights go out and when the lights come back on, the generator stops.
Equipped for starting at Low tempreratures
Work temperature -25ºC+50ºC
