LUCLA GLU-55-SR Diesel Electric Generator

LUCLA GLU-55-SR Diesel Electric Generator
Tip
lot no. 104
Closes in 1h 8m 46s 23/01/24 12:44
4,600 € Starting bid
2 watchers
Log in to bid
Use bidding agent
+ auction fee & VAT
LUCLA GLU-55-SR Diesel Electric Generator
Closes in 1h 8m 46s
Closing time
4,600 €
Starting bid
Name
LUCLA GLU-55-SR Diesel Electric Generator
Item number
887765
Manufacturer
LUCLA
Model / Type
GLU-55-SR
Year of manufacture
2022
Item available from
Immediately
Item condition
Location
Spain, 24392 Villadangos del Páramo
Buyer’s premium
18 %
Total Price
plus VAT
Shipping costs
not included
Delivery terms
FCA Villadangos del Páramo, free on truck
Payment terms
100% payment prior to collection
Security deposit
This auction requires the deposit of a credit card.
Approx. Onsite Dimension. (l x w x h)
2,220 x 950 x 1,260 mm
weight approx.
900 kg
  • IPower: 50kva
  • Voltage: 233/400v
  • Rated Current: 72,2a
  • Max. sound level: ≤78

Engine:

  • Model: N4105ZDS
  • Air Intake system: Turbocharged
  • Nº cylinders: 4
  • Raded speed: 1500 r/min
  • Rated Power: 56 kw
  • Intellite governor type: Mechanical
  • Start Motor: 24v

Exhaust system:

  • Exhaust gas flow 198 m3/min
  • Gas temp: ≤600
  • Max. back pressure: 3kpa

Air Intake System:

  • Intakepipe diameter: 60 mm
  • Fuel System:
  • Load prime power: 10 l/h
  • Fuel tank capacity: 120 l

Lubrication System:

  • Total system oil capacity 13 l
  • Oil consumption: ≤2,4 g/kw.h
  • Min oil pressure: 1,5 MPa

Cooling System:

  • total coolant capacity: 18,5 l
  • Thermostat 75-95ºC
  • Max. top tank temperature: 105ºC

Alternator - Lucla

  • Model LU224D
  • Phase: 3
  • Voltage 230/400v
  • Frequency: 50 Hz
  • Prime power: 50kva

Controller - ComAp

  • Model Intelilite AMF 25 comap

Protective Functions:

  • oil pressure
  • HIght water temperature
  • High Engine temperatuve and overspeed
  • Voltage regulator frequency regulator
  • Emergency stop
  • Auto starting transfer

ATS is incorporated in the machine itself, which is for the generator to start by itself when the lights go out and when the lights come back on, the generator stops.
Equipped for starting at Low tempreratures
Work temperature -25ºC+50ºC

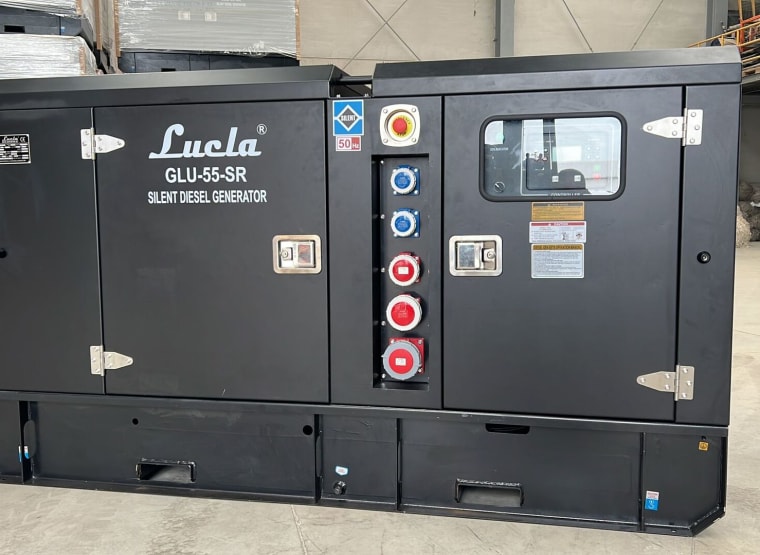

The generator that is delivered is NOT the one shown in the photographs, but an identical one.
