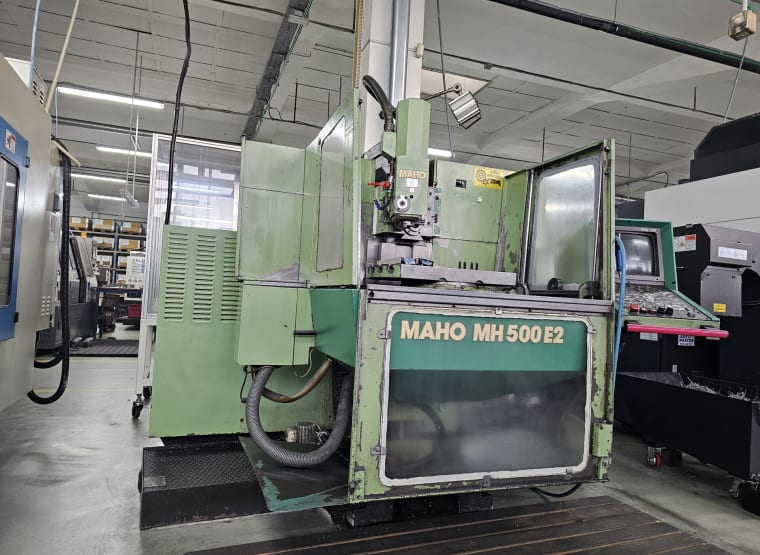

MAHO MH 500 E2 Tool Milling Machine
Top lot
lot no. 11
2,500 €
11 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
14/02/24 09:09
Closing time
2,500 €
Starting bid
Item details
- Name
- MAHO MH 500 E2 Tool Milling Machine
- Item number
- 882796
- Manufacturer
- MAHO
- Model / Type
- MH 500 E2
- Year of manufacture
- unknown
- Item available from
- immediately
- Item condition
- Location
-
Slovenia, 8330 Metlika
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 1,500.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Metlika, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- z-motion
- 350 mm
- Read off operating hours
- 54,064 h
- x-motion
- 500 mm
- y-motion
- 400 mm
- control
- PHILIPS 432
- table surface area l x w
- 350 x 660 mm
- tool taper
- ISO40/DIN 69871
- turning speed range
- 20 – 5000 rpm
- feed range
- 1 - 4000 mm/min
- rapid motion
- 5 - 6 m/min
- weight approx.
- 2,100 kg
- Approx. Onsite Dimension. (l x w x h)
- 3,200 x 2,200 x 1,900 mm
- machine number
- 53,183
Item description
- serial number: 53183
- control: PHILIPS 432
- working hours: approx. 54064 hrs.
- travels:
- X-axis: 500 mm
- Y-axis: 400 mm
- Z-axis: 350 mm
- quill stroke: 50 mm
- feed rate: 1 - 4000 mm/min.
- turning speed range rpm: 20 – 5000 rpm
- rapid traverse:
- X-axis: 6m/min.
- Y-axis: 5 m/min.
- Z-axis: 6 m/min
- table dimensions: 350 x 660 mm
- tool taper: ISO40/DIN 69871
- total power requirement: 10 kW
- milling table swivable: table rotation on B axis - table tilt by -30° to +30°
- attention: main drive non functional!
Automatic translation
Auction details
- lot no.
- 11
- Documents
- Spec. Auction Terms
- Inspection
-
The exact location is available on request.
No fixed date. The items are in different locations (see item description). Inspection by appointment only!
