Item details
- Name

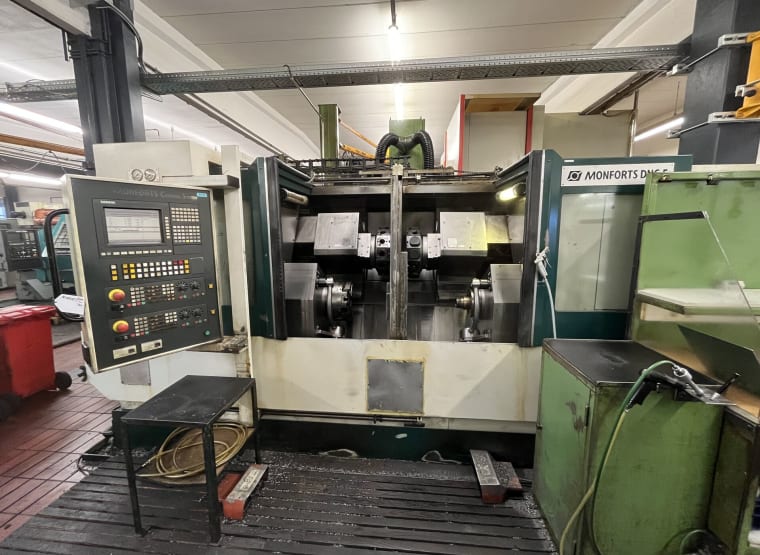

- MONFORTS CNC Lathe
- Item number
- 883299
- Manufacturer
- MONFORTS
- Model / Type
- unknown
- Year of manufacture
- 2001
- Item available from
- immediately
- Item condition
- Location
-
Germany, 73529 Schwäbisch Gmünd
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 550.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Schwäbisch Gmünd, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- weight approx.
- 16,000 kg
- Approx. Onsite Dimension. (l x w x h)
- 6,200 x 2,300 x 2,200 mm
Item description
"- Serial number: 402/03
- Work area:
- Max. turning diameter: 520 mm
- Max. swing diameter: 560 mm
- Max. tool swing diameter: 695 mm
- Z-axis travel: 600 mm
- X-axis: 260 mm
- Max. spindle distance: 1460 mm
- Spindles 1/2:
- Spindle head: DIN55026-A8
- Max. passage for rolled material: 82 mm
- Max. passage for bare material: 85 mm
- Spindle diameter in the front bearing: 130 mm
- Diameter of the mounted chuck: 250 mm
Important note: The second chuck is still being assembled (no second chuck can be seen in the photos).
A three-jaw chuck with a diameter of 250 mm is installed on the right side.
Axes:
Max. feed force:
Z-axis: 13.6 kN
X-axis: 7.2 kN
Rapid traverse speed:
Z-axis: 15 m/min
X-axis: 12 m/min
Tool turret 1/2 according to DIN69880
Shaft diameter: 40 mm
Number of powered stations: 12 + 12
Both turrets can accommodate powered tools.
Max. speed: 3000 rpm
C1 axis present
With technical documentation, as shown in the pictures.
Accessories: 5 tool holders without turning tools etc. (chip-removing tools)
"
- Work area:
- Max. turning diameter: 520 mm
- Max. swing diameter: 560 mm
- Max. tool swing diameter: 695 mm
- Z-axis travel: 600 mm
- X-axis: 260 mm
- Max. spindle distance: 1460 mm
- Spindles 1/2:
- Spindle head: DIN55026-A8
- Max. passage for rolled material: 82 mm
- Max. passage for bare material: 85 mm
- Spindle diameter in the front bearing: 130 mm
- Diameter of the mounted chuck: 250 mm
Important note: The second chuck is still being assembled (no second chuck can be seen in the photos).
A three-jaw chuck with a diameter of 250 mm is installed on the right side.
Axes:
Max. feed force:
Z-axis: 13.6 kN
X-axis: 7.2 kN
Rapid traverse speed:
Z-axis: 15 m/min
X-axis: 12 m/min
Tool turret 1/2 according to DIN69880
Shaft diameter: 40 mm
Number of powered stations: 12 + 12
Both turrets can accommodate powered tools.
Max. speed: 3000 rpm
C1 axis present
With technical documentation, as shown in the pictures.
Accessories: 5 tool holders without turning tools etc. (chip-removing tools)
"
