Item details
- Name

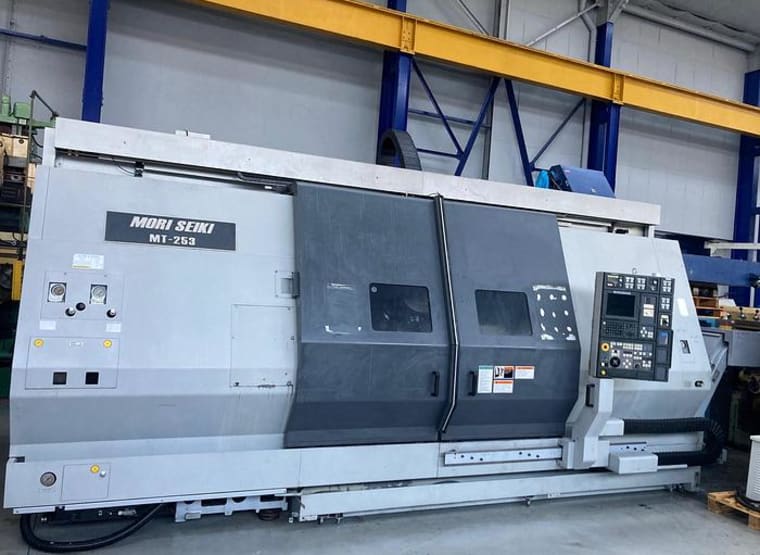

- MORI SEIKI MT 253X1500 CNC Lathe
- Item number
- 878697
- Manufacturer
- MORI SEIKI
- Model / Type
- MT 253X1500
- Year of manufacture
- 2002
- Item available from
- immediately
- Item condition
- Location
-
France, region Loire
Costs and benefits
- 18 %
- 2,000.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- weight approx.
- 20,000 kg
- Approx. Onsite Dimension. (l x w x h)
- 9,800 x 2,970 x 3,230 mm
Item description
Turning center with auto indexing milling head (multitask CNC lathe)
CNC system MSG-501 (Fanuc 18i-T)
Max. turning length 1530 mm
Max. turning diameter 420 mm (Max. swing over the bed 800 mm)
Max; distance between centers 1702 mm
Turning spindle speeds 3500 RPM – power 22 kW
Milling spindle speeds 8000 RPM - power 11 kW
Auto 3-jaw chuck Forkardt diameter 220 mm (max. rev. 4700 RPM Fmax 6000 daN) but limited to 3500 RPM
Auto steady SMW Autoblok type SLU-3.2-ZS capacity 50-200 mm
Bar capacity / Spindle bore 73 mm - (turning spindle bore 86 mm).
Travels : X = 635 x Z =1595 mm
Y +/- 110 mm
B-axis : -120° / +105 ° (indexing angle 0,001°)
C-axis 0,001°
Rapids feeds X, Y = 24 m/min and Z = 30m/min
Low coolant and high pressure coolant
Auto tool changer 60 positions type KM 63 (Kennametal)
Tool measuring Renishaw
Auto opening doors
Motorized tailstock CM 5 (quill dia. 110 mm)
Total power required 62 KVA
CNC system MSG-501 (Fanuc 18i-T)
Max. turning length 1530 mm
Max. turning diameter 420 mm (Max. swing over the bed 800 mm)
Max; distance between centers 1702 mm
Turning spindle speeds 3500 RPM – power 22 kW
Milling spindle speeds 8000 RPM - power 11 kW
Auto 3-jaw chuck Forkardt diameter 220 mm (max. rev. 4700 RPM Fmax 6000 daN) but limited to 3500 RPM
Auto steady SMW Autoblok type SLU-3.2-ZS capacity 50-200 mm
Bar capacity / Spindle bore 73 mm - (turning spindle bore 86 mm).
Travels : X = 635 x Z =1595 mm
Y +/- 110 mm
B-axis : -120° / +105 ° (indexing angle 0,001°)
C-axis 0,001°
Rapids feeds X, Y = 24 m/min and Z = 30m/min
Low coolant and high pressure coolant
Auto tool changer 60 positions type KM 63 (Kennametal)
Tool measuring Renishaw
Auto opening doors
Motorized tailstock CM 5 (quill dia. 110 mm)
Total power required 62 KVA
