MÜLLER ZE 630 / ZE 400 Double Column Press line
Item details
- Name
- MÜLLER ZE 630 / ZE 400 Double Column Press line
- Item number
- 719804
- Manufacturer
- MÜLLER
- Model / Type
- ZE 630 / ZE 400
- Documents
- pdf_info_2.pdf
- Year of manufacture
- unknown
- Item available from
- immediately
- Item condition
- Location
-
Netherlands, 3751LJ Bunschoten
- Show on map
- All items at this location
Costs and benefits
- Shipping costs
- not included
- Delivery terms
- EXW Bunschoten, ex foundation, unpackaged
- Payment terms
- 100% payment prior to collection
Technical details
- pressure
- 630 / 400 to
- weight approx.
- 150,000 kg
- Approx. Onsite Dimension. (l x w x h)
- 4,000 x 2,000 x 5,500 mm
Item description

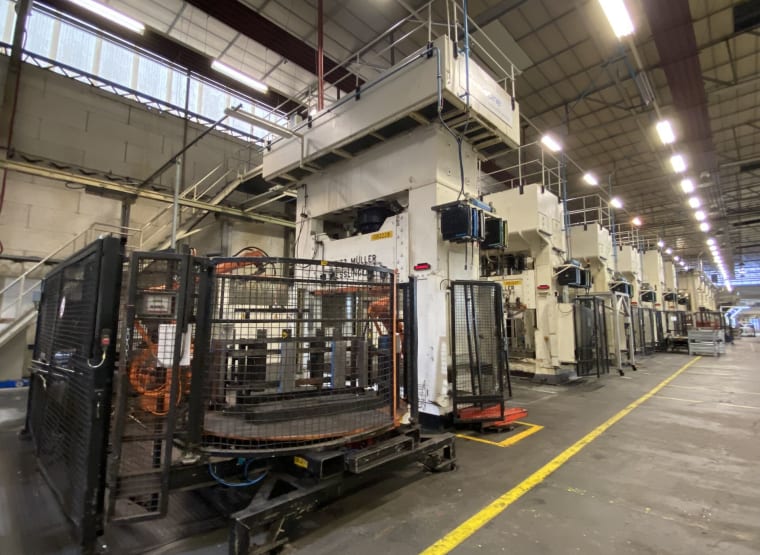

Press line consiting of;
6x MÜLLER Hydraulic double column deep draw presses
6x MÜLLER Hydraulic double column deep draw presses
- Type: (2x) ZE 630
- Year of manufacture: 1962 and 1963
- Capacity: 630 ton
- Ram weight: 19.000 kg
- Max. punch weight: 47.000 kg
- Max. tool dimensions: 2460 x 1900 mm
- Min. installation height: 710 mm
- Max. installation height (only for cutting tool): 1060 mm
- Machine dimensions: approx. 4000 x 2000 x 5500 mm
- Machine weight: approx. 150.000 kg
- Type: (4x) ZE 400
- Year of manufacture: (2x)1971, 1965 and 1960
- Capacity: 400 ton
- Ram weight: (3x) 12.000 kg and (1x) 8.200 kg
- Max. punch weight: 16.400 kg
- Max. tool dimensions: (3x) 2460 x 1400 mm and (1x) 2040 x 1300 mm
- Min. installation height: 610 mm
- Max. installation height (only for cutting tool): 910 mm
- Machine dimensions: approx. 4000 x 2000 x 5000 mm
- Machine weight: approx. 120.000 kg
7x Pick- and Place robots
- Manufacturer: ABB
- Type: IRB 6400
- Reach: 3000 mm
- Max. payload: 75 kg
