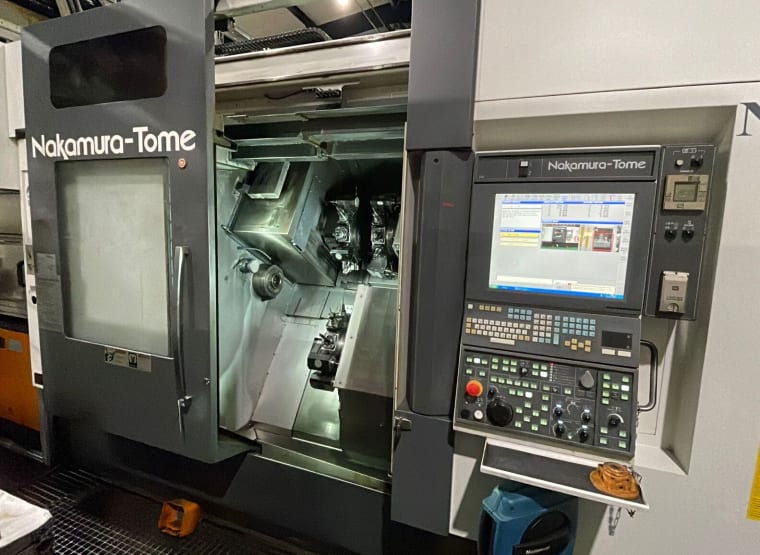

NAKAMURA-TOME NTY3-250 double spindle precision turning center
Top lot
lot no. 300
45,900 €
3 Bids 40 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
30/01/24 14:20
Closing time
45,900 €
Current highest bid
Item details
- Name
- NAKAMURA-TOME NTY3-250 double spindle precision turning center
- Item number
- 867529
- Manufacturer
- NAKAMURA-TOME
- Model / Type
- NTY3-250
- Videos
-
Video 1 - Year of manufacture
- 2011
- Item available from
- immediately
- Item condition
- Location
-
Germany, 02733 Cunewalde
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 4,000.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Cunewalde, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- serial number
- MA 200205
- control
- NAKAMURA-TOME AR 5
- Approx. Onsite Dimension. (l x w x h)
- 8,000 x 3,200 x 2,600 mm
- toolchanger positions
- 36
- spindle bore
- 80 mm
- Counter spindle
- Yes
- Integrated C-axis
- Yes
- turning diameter
- 224 mm
- Drehlänge
- 905.5 mm
- weight approx.
- 18,000 kg
Item description
max. swivel diameter of the workpiece 225 mm
Standard turning diameter 150 mm
max. distance between spindle heads 1200 mm
max. bar size 65 mm
chuck 210/165 mm
Rotation speed range workpiece spindles : 5000 rpm
Travel X1, X2 and X3 160.5/160.5/165 mm, Z1, Z2 and Z3 355/355/910 mm, Y1, Y2 and Y3 -61 to +51/-61 to +51/-51 to +61 mm, B2 945 mm
Internal diameter front bearing 110 mm
Tie bar bore 66 mm
Spindle center height 1275 mm
Includes loading unit and KUKA loading robot
with control cabinet and teach-in panel
Attention: a truck with a width of up to 3000 mm is required for transport.
See also video
Automatic translation
Auction details
- Auction name
- Bankruptcy Auction of Precision Parts Manufacturer P.C.S. Precision Works Germany GmbH Part 2
- lot no.
- 300
- Documents
- Spec. Auction Terms
- Inspection
-
The exact location is available on request.
02733 Cunewalde, Germany
- address on request -
Viewing by prior appointment only!
- Pick up
-
Monday, 12/02/2024 to
Friday, 16/02/2024, from 08:00 to 16:00
Monday, 19/02/2024 to
Friday, 23/02/2024, from 08:00 to 16:00
Monday, 26/02/2024 to
Thursday, 29/02/2024, from 08:00 to 16:00
