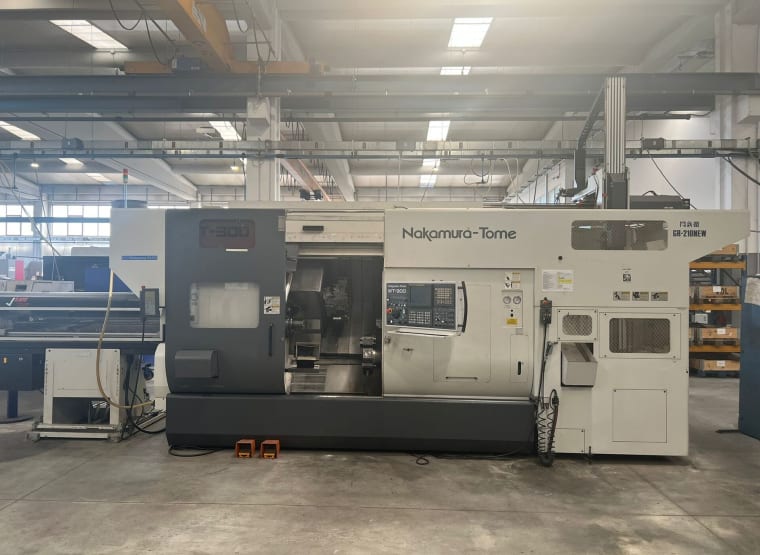

NAKAMURA-TOME WT-350 CNC Lathe with Bar Feeder
lot no. 3
30,000 €
32 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
20/02/24 09:02
Closing time
30,000 €
Starting bid
Item details
- Name
- NAKAMURA-TOME WT-350 CNC Lathe with Bar Feeder
- Item number
- 881629
- Manufacturer
- NAKAMURA-TOME
- Model / Type
- WT-350
- Documents
- 1-20 Nakamura-Tome-WT-300.pdf 1-21 Quick-Load-Servo-S3-T-Instruction-Manual.pdf
- Videos
-
Video 1 Video 2 Video 3 Video 4 Video 5 - Year of manufacture
- unknown
- Item available from
- immediately
- Item condition
- Location
-
Romania, 310419 Arad
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 1,300.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Arad, loaded on truck
- Payment terms
- 100% payment prior to collection
- tax / deposit
Technical details
- serial number
- M301006
- weight approx.
- 14,600 kg
- Approx. Onsite Dimension. (l x w x h)
- 2,276 x 4,300 x 2,487 mm
Item description
NAKAMURA-TOME WT-350 CNC Lathe
- serial number M301006
- supply voltage (Volts) AC 200/220 V, 3 phases, 50 Hz/60 Hz
- full load 270/245 A
- main breaker 300 A
- trans rating 93,4 kVA
- control voltage DC 24 V
- weight 12000 kg
*for further technical data see 1-20 Nakamura-Tome-WT-300.pdf
LNS -QUICK LOAD SERVO III - Bar feeder
- axis height 900 - 1200 mm / 1200 -1400 mm
- retraction device 600 mm
- minimum diameter 6 mm
- maximum diameter 120 mm
- minimum bar stock length 300 mm (*)
- maximum bar stock length 1600 mm (*)
- maximum permitted bar weight 67 kg/bar
- pneumatic pressure 6 bar
- maximum pneumatic consumption 6 liters (per loading cycle)
- supply voltage (Volts) 220 - 480 V, 50 Hz/60 Hz
- max. current (Amps) 1 A
- pushing force 167 Nm
- maximum feed rate 100 m/min
- loading cycle 8 - 12 sec.
- loading time for short parts 4 - 7 sec
- depth of the bar magazine 1000 mm
- dimension 2048 x 1486 x 1248 - 1748 mm
- weight 570 kg
*for further technical data see 1-21 Quick-Load-Servo-S3-T-Instruction-Manual.pdf
Automatic translation
Auction details
- lot no.
- 3
- Documents
- Spec. Auction Terms
- Inspection
-
The exact location is available on request.
No fixed date. The items are in different locations (see item description). Inspection by appointment only!
