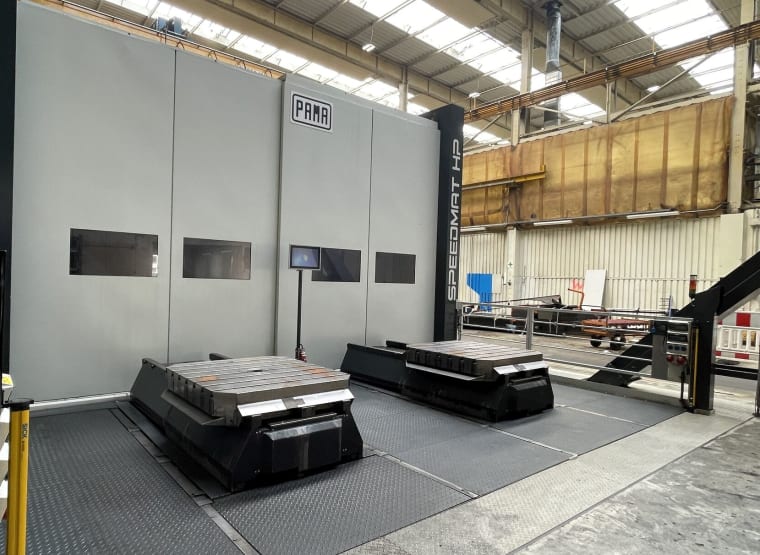

PAMA Speedmat HP3 CNC Horizontal Machining Center
Item details
- Name
- PAMA Speedmat HP3 CNC Horizontal Machining Center
- Item number
- 776207
- Manufacturer
- PAMA
- Model / Type
- Speedmat HP3
- Documents
- Doku.pdf Layout.pdf
- Videos
-
Video 1 - Year of manufacture
- 2014
- Item available from
- immediately
- Item condition
- good, under power
- Location
-
Germany, 80997 München
- Show on map
- All items at this location
- Virtual 3D Tour: View this item on site
Costs and benefits
- Shipping costs
- not included
- Delivery terms
- FCA München, free on truck
- Payment terms
- 100% payment prior to collection
Technical details
- z-motion
- 3,200 mm
- max. workpiece weight between centers
- 8,000 kg
- x-motion
- 3,000 mm
- y-motion
- 2,000 mm
- control
- SIEMENS Sinumerik 840 D sl
- pallet table size
- 1250 x 1250 mm
- numbers of pallets
- 2
- taper
- HSK A-100
- toolchanger positions
- approx. 400
- feed range
- 0,5 - 10000 mm/min
- rapid motion
- 30 m/min
- weight approx.
- 90,000 kg
- Approx. Onsite Dimension. (l x w x h)
- 19,000 x 12,000 x 5,500 mm
Item description
Well-maintained PAMA Speedmat HP3 Machining Centre with Pallet and Head Changer.
Control
Axis speed and Power transmission
Tool changer
The tools to be seen are not part of the offer.
Please have a look at the technical data in PDF and the machine video.
Control
- SIEMENS Sinumerik 840 D sl
- Workpiece dimensions (Ø x h) max.: 3,000 mm x 3,200 mm
- Load capacity of pallet table max.: 8,000 kg
- Table dimensions: 1,250 x 1250 mm
- Work spindle diameter: 130 mm
- Number of interchangeable pallets: 2
- Axis travel X-axis: 3,000 mm
- Axis travel Y-axis: 2,000 mm
- Axis travel Z-axis: 3,200 mm + W-axis max.: 800 mm
- Table rotation B-axis: 360
Axis speed and Power transmission
- Table speed (B axis) max.: 7 upm
- Table torque max.: 48
- Feed rate X, Y, Z axis: 0.5 - 10,000 mm/min
- Feed force X, Y, Z axis max.: 20,000 N
- Rapid traverse X, Y, Z axis: 30 m/min
- Spindle drive speed max.: 6,500 rpm
(the actual speed at the tool varies depending on the machining head)
Tool changer
- Tool holder: HSK A-100
- Magazine capacity approx.: 400 tools
- Serial number: 30PI4471
- Power supply: 400V 50Hz
The tools to be seen are not part of the offer.
Please have a look at the technical data in PDF and the machine video.
