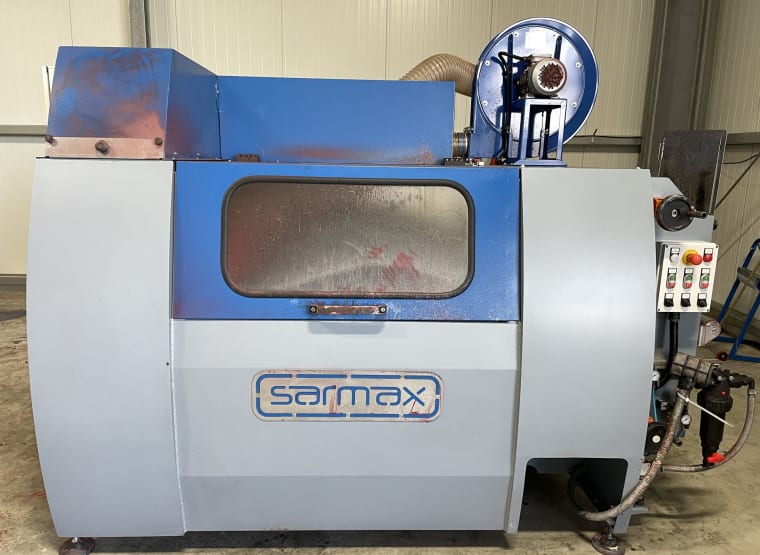

SARMAX APACHE 7 Roller Application Machine
Item details
- Name
- SARMAX APACHE 7 Roller Application Machine
- Item number
- 869469
- Manufacturer
- SARMAX
- Model / Type
- APACHE 7
- Documents
- Sarmax-APACHE-5-7-Flyer.pdf
- Year of manufacture
- 2018
- Item available from
- immediately
- Item condition
- Location
-
Germany, 87647 Kraftisried
- Show on map
- All items at this location
Costs and benefits
- 250.00 €
- Shipping costs
- not included
- Delivery terms
- FCA Kraftisried, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- Approx. Onsite Dimension. (l x w x h)
- 2,400 x 1,500 x 1,600 mm
- weight approx.
- 1,200 kg
Item description
Flooding unit with six (6) brushes,
especially suitable for coating with water-soluble paints, varnishes and oiling of facade elements or profiled woods
Technical data:
Machining width: 300 mm
Machining height: 300 mm
Workpiece length min.: 80 cm
Feed speed, FU, frequency-controlled 10-60 m/min
Number of driven transport rollers, crosswise 2 pcs.
Ø of transport rollers 80 mm
Brush arrangement:
1. top
2. bottom
3. right
4. left
5. top
6. bottom
Ø of the brushes 160 mm
Brush drive central, free-guide controlled 3 kW
BERNOULLI version, three-sided blow-off of the workpieces via a fan 4.0 kW
Double diaphragm pump: 100 l/min.
Compressed air consumption: 600 l/min.
Connection: CEE plug, 16 A 400/50/3 V/Hz/P E
Total power: 5.5 kW
Weight approx.: 1200 kg
Operation: via command and signalling devices according to VDE, hydraulic ball valves Dimensions: (L/W/H) 2300 x 1500 x 1600 mm
Standard: CE
Colour, design 2021 7046 RAL
Subject to prior sale
especially suitable for coating with water-soluble paints, varnishes and oiling of facade elements or profiled woods
Technical data:
Machining width: 300 mm
Machining height: 300 mm
Workpiece length min.: 80 cm
Feed speed, FU, frequency-controlled 10-60 m/min
Number of driven transport rollers, crosswise 2 pcs.
Ø of transport rollers 80 mm
Brush arrangement:
1. top
2. bottom
3. right
4. left
5. top
6. bottom
Ø of the brushes 160 mm
Brush drive central, free-guide controlled 3 kW
BERNOULLI version, three-sided blow-off of the workpieces via a fan 4.0 kW
Double diaphragm pump: 100 l/min.
Compressed air consumption: 600 l/min.
Connection: CEE plug, 16 A 400/50/3 V/Hz/P E
Total power: 5.5 kW
Weight approx.: 1200 kg
Operation: via command and signalling devices according to VDE, hydraulic ball valves Dimensions: (L/W/H) 2300 x 1500 x 1600 mm
Standard: CE
Colour, design 2021 7046 RAL
Subject to prior sale
