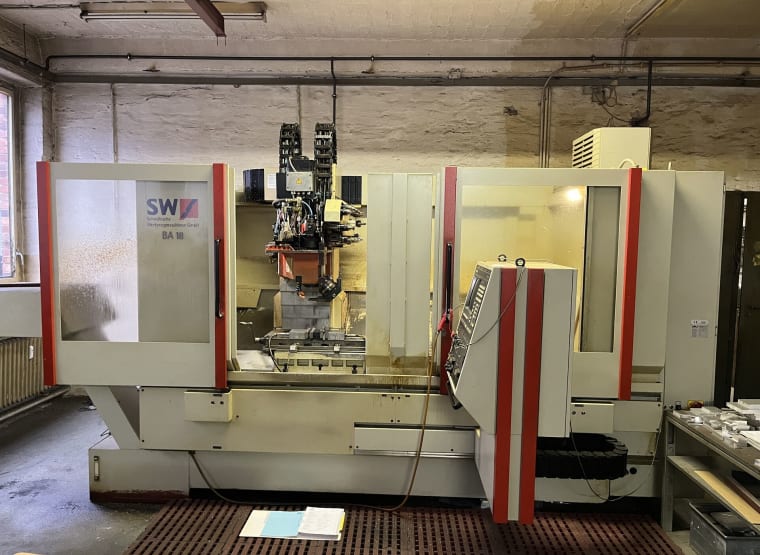

SCHWÄBISCHE WERKZEUGMASCHINEN GMBH BA18 CNC Vertical Machining Center
Top lot
lot no. 15
1,200 €
20 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
Closes in 1d 4h
Closing time
1,200 €
Starting bid
Item details
- Name
- SCHWÄBISCHE WERKZEUGMASCHINEN GMBH BA18 CNC Vertical Machining Center
- Item number
- 883334
- Manufacturer
- SCHWÄBISCHE WERKZEUGMASCHINEN GMBH
- Model / Type
- BA18
- Year of manufacture
- 1996
- Item available from
- immediately
- Item condition
- Location
-
Germany, 13407 Berlin
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 300.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Berlin, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- weight approx.
- 6,000 kg
- Approx. Onsite Dimension. (l x w x h)
- 4,500 x 2,700 x 2,600 mm
Item description
Processing stations: 2 (left + right)
Long version: 1
Workbench support: 2 support rails for Vario table program
Vario top table (standard)
Clamping surface (X/Y): 600 x 375 mm (left + right)
Long version: 2200 x 375 mm
Fastening: 3 x T-slot 14 x 600 mm
Center alignment groove: 14H8
Groove spacing: 125 mm
Table height: 120 mm
Distance table left-right: 400 mm
Table top-floor: approx. 1000 mm (vertical)
Table top spindle nose: max. 500 mm (vertical) (without table: 620 mm)
Table top spindle nose: min. 150 mm (vertical) (without table: 270 mm)
Max. Table load (with table weight: 120 kg): 250 kg each
Front edge of cabin table:
Door open: approx. 215 mm (horizontal)
Door closed: approx. 330 mm (horizontal)
Max. Door opening (left + right): approx. 2010 mm
Center post removed
Tool magazine:
Chain magazine: 1 x 36 tools
See pictures for further technical data
Incl. SK 30 tools with holders (as shown in the pictures) (full magazine, 36 tools)
With technical documentation as shown in the pictures
Important note: the machine vices mounted on the work tables are not included in the scope of delivery and sale
Transport dimensions: approx. 3600 x 2000 x 2500 mm
Long version: 1
Workbench support: 2 support rails for Vario table program
Vario top table (standard)
Clamping surface (X/Y): 600 x 375 mm (left + right)
Long version: 2200 x 375 mm
Fastening: 3 x T-slot 14 x 600 mm
Center alignment groove: 14H8
Groove spacing: 125 mm
Table height: 120 mm
Distance table left-right: 400 mm
Table top-floor: approx. 1000 mm (vertical)
Table top spindle nose: max. 500 mm (vertical) (without table: 620 mm)
Table top spindle nose: min. 150 mm (vertical) (without table: 270 mm)
Max. Table load (with table weight: 120 kg): 250 kg each
Front edge of cabin table:
Door open: approx. 215 mm (horizontal)
Door closed: approx. 330 mm (horizontal)
Max. Door opening (left + right): approx. 2010 mm
Center post removed
Tool magazine:
Chain magazine: 1 x 36 tools
See pictures for further technical data
Incl. SK 30 tools with holders (as shown in the pictures) (full magazine, 36 tools)
With technical documentation as shown in the pictures
Important note: the machine vices mounted on the work tables are not included in the scope of delivery and sale
Transport dimensions: approx. 3600 x 2000 x 2500 mm
