Top lot
lot no. 50
8,500 €
3 Bids 32 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
05/03/24 10:49
Closing time
8,500 €
Current highest bid
Item details
- Name

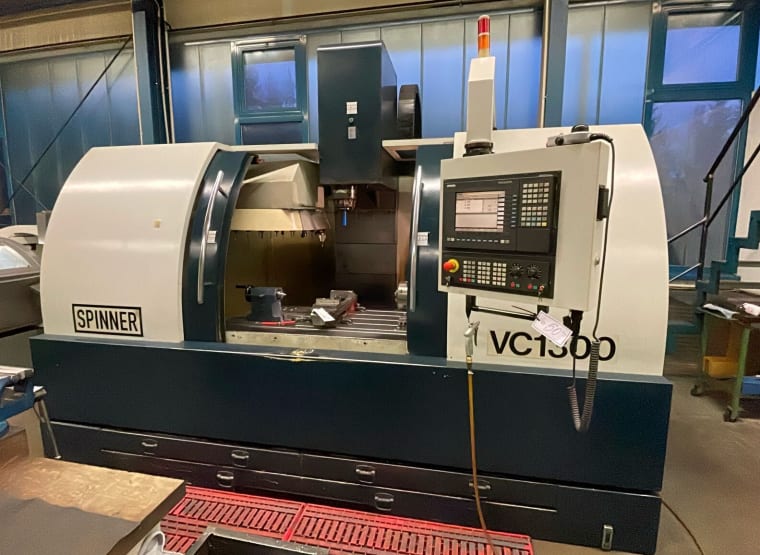

- SPINNER VC-1300 vertical machining center
- Item number
- 885725
- Manufacturer
- SPINNER
- Model / Type
- VC-1300
- Videos
-
Video 1 Video 2 - Year of manufacture
- ~2002
- Item available from
- immediately
- Item condition
- Location
-
Germany, 66620 Nonnweiler
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 1,450.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Nonnweiler, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- z-motion
- 610 mm
- max. workpiece weight between centers
- 1,000 kg
- x-motion
- 1,300 mm
- y-motion
- 610 mm
- control
- SIEMENS SINUMERIK
- table surface area l x w
- 1600x600 mm
- taper
- SK40
- toolchanger positions
- 24
- turning speed range
- 8,000 rpm
- rapid motion
- 24 m/min
- weight approx.
- 7,500 kg
- Approx. Onsite Dimension. (l x w x h)
- 3,620 x 3,000 x 2,800 mm
Item description
maximum tool diameter with full occupancy 80 mm, maximum tool diameter with free adjacent positions 120 mm, maximum tool length 250 mm, maximum tool weight 7 kg, tool change time approx. 6.5 seconds, spindle bearing diameter front 70 mm, feed force in X-/Y- and Z-axis 377 daN each, serial number AB 0259, Attention: the machine vice stored on the machine table is not included in the scope of delivery, including dividing head and associated tailstock, as well as the tool holders and tools located on the tool changer
Automatic translation
Auction details
- Auction name
- Closure of a Toolmaker
- lot no.
- 50
- Documents
- Spec. Auction Terms
- Inspection
-
Monday, 04/03/2024, from 12:00 to 14:00
66620 Nonnweiler, Germany
- address on request -
Viewing by prior appointment only!
- Pick up
-
Tuesday, 19/03/2024 to
Friday, 22/03/2024, from 08:00 to 16:00
Wednesday, 13/03/2024 to
Friday, 15/03/2024, from 08:00 to 16:00
