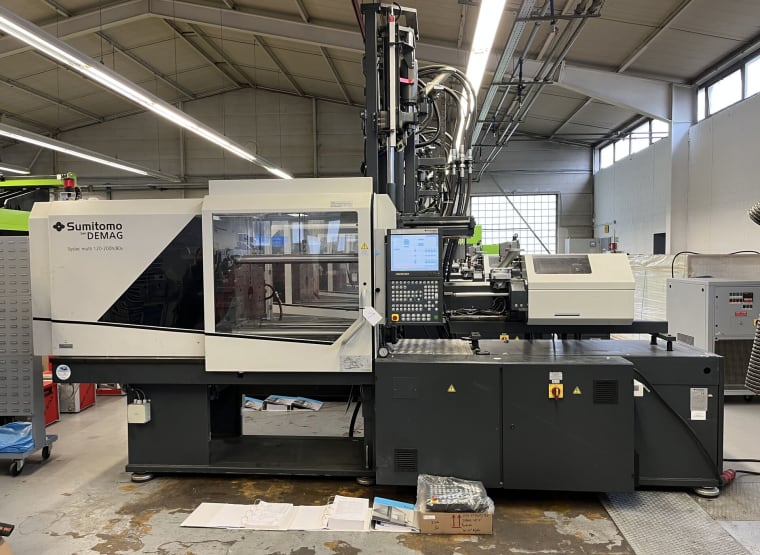

SUMITOMO SYSTEC MULTI 120-200H/80V Injection Moulding Machine
Top lot
lot no. 1
10,150 €
2 Bids 23 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
Closes in 1d 23h
Closing time
10,150 €
Current highest bid
Item details
- Name
- SUMITOMO SYSTEC MULTI 120-200H/80V Injection Moulding Machine
- Item number
- 882372
- Manufacturer
- SUMITOMO
- Model / Type
- SYSTEC MULTI 120-200H/80V
- Year of manufacture
- 2016
- Item available from
- immediately
- Item condition
- Location
-
Germany, 79331 Teningen
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 500.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Teningen, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- Approx. Onsite Dimension. (l x w x h)
- 4,500 x 1,500 x 3,300 mm
- weight approx.
- 10,000 kg
Item description
- Machine number: 80040026
- Operating voltage: 400V
- Frequency: 50Hz
- Rated current: 160 A
- Control: SUMITOMO DEMAG NC5
- Closing force: 1200 kN
- Locking force: 1200 kN
- Opening distance: max. 600 mm
- Tool installation height: at least 250 mm
- Max. distance between the tool clamping plates: 950 mm
- Tool clamping plates: 670 x 670 mm
- Clear distance between columns: 470 x 470 mm
- Max. tool weight: 1100 kg
- Max. weight share of movable tool platen: 750 kg
- Ejector travel: 180 mm
- Ejector force: 41 kN
- Ejector retraction force: 15 kN
- Horizontal injection unit type: 200H
- Screw diameter: 30 mm
- L/D ratio: 20
- Injection pressure (up to 400°C): 1995 bar
- Stroke volume: 106 cm³
- Molded part weight: 96 g
- Dosing path: max. 150 mm
- Nozzle path: max. 250 mm
- Nozzle immersion depth: 40 mm
- Nozzle contact force: 60 kN
- Injection unit vertical type: 80V
- Screw diameter: 25 mm
- L/D ratio: 20
- Injection pressure (up to 400°C): 1596 bar
- Displacement volume: 54 cm³
- Molded part weight: 48 g
- Max. dosing path: 110 mm
- Nozzle contact force: 30 kN
- Nozzle spacing: 90 mm
- Material funnel capacity: 20 l
Attention: The machine can be transported on a normal standard truck.
