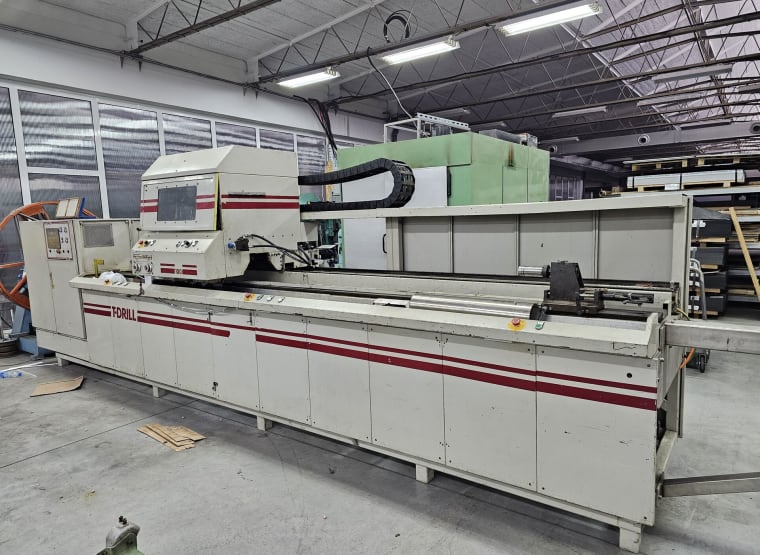

T-DRILL SEC-100 TBC Automatic Collaring Machine for Making Manifolds

SEC-100 TBC is an automatic collaring machine for making manifolds
It includes a feed table with either 1- or 2-axis control
The tube is fastened from its both ends to the SEC-100 TBC
A suitable collaring program is selected from the PC controls and an automatic cycle is started SEC-100 TBC makes all the collars according to the selected program
Manual process:
• preset the elliptical pilot hole parameters manually.
• install the preadjusted collaring head and the clamps accoridng to the tube size.
• set the axial tube stop.
• mount the tube in the clamps.
• push the start-button and the cycle will start.
Automatic cycle:
• the clamps close and the EC-100 mills the elliptical hole.
• when the hole is ready, the EC-100 unit retracts.
• the S-100 unit begins the collaring of the tube and the trimming of the collar.
• finally the EC-100 returns to the milling position and the clamps open.
• on the TBC-model the unit is positioned according to the program and the cycle repeats.
