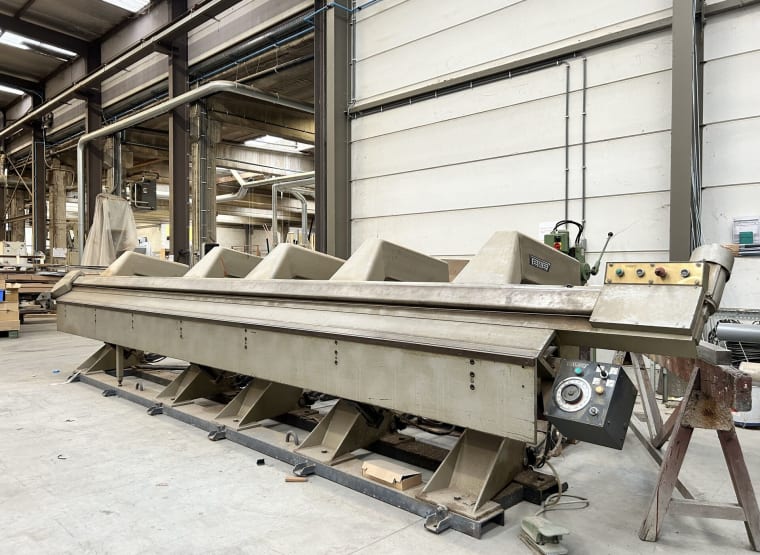

TEWE SE-HY-R Swivel Bending Machine

TEWE SE-HY-R Swivel Bending Machine
Tip
lot no. 84
1/24
  • TEWE SE-HY-R Swivel Bending Machine
  • TEWE SE-HY-R Swivel Bending Machine
  • TEWE SE-HY-R Swivel Bending Machine
  • TEWE SE-HY-R Swivel Bending Machine
  • TEWE SE-HY-R Swivel Bending Machine
  • TEWE SE-HY-R Swivel Bending Machine
  • TEWE SE-HY-R Swivel Bending Machine
  • TEWE SE-HY-R Swivel Bending Machine
  • TEWE SE-HY-R Swivel Bending Machine
Closes in 1d 5h 24/01/24 15:17
11,000 € Starting bid
1 watcher
Log in to bid
€
Use bidding agent
+ auction fee & VAT
TEWE SE-HY-R Swivel Bending Machine
Closes in 1d 5h
Closing time
11,000 €
Starting bid
Name
TEWE SE-HY-R Swivel Bending Machine
Item number
887214
Manufacturer
TEWE
Model / Type
SE-HY-R
Year of manufacture
1984
Item available from
immediately
Item condition
unchecked
Location
Belgium, 2550 Kontich
Buyer’s premium
18 %
Total Price
plus VAT
Shipping costs
not included
Delivery terms
EXW Kontich, ex foundation, unpackaged
Payment terms
100% payment prior to collection
tax / deposit
In the case of a cross-border supply, the amount of tax due is initially retained by the deposit shown on the invoice.
Security deposit
This auction requires the deposit of a credit card.
weight approx.
2,860 kg
Approx. Onsite Dimension. (l x w x h)
6,020 x 1,100 x 1,200 mm

  1. Dimensions:

    • Maximum length of the workpiece: 6,000 mm
    • Maximum width of the workpiece: 1,000 mm
    • Thickness of the steel: 2.0 mm

  2. Maximum Sheet Thickness:

    • In steel (40 Kg/mm2): 2.6 mm
    • In semi-hard aluminum: 2.6 mm

  3. Weight:

    • Machine weight: 2860 Kg

  4. Motor Power:

    • Motor power: 4.0 KW

  5. Specifications:

    • Number of L-type uprights: 6 pieces
    • Number of K 18 S hinge points: 7 pieces

  6. Hydraulic Installation:

    • Power of the hydraulic installation: 4.0 Kw
    • Bending speed of the lower beam: From 0 to 1456 mm in 4 seconds

  7. Stroke and Closing Speed:

    • Stroke of the upper beam (opening between lower and upper beam): 220 mm
    • Closing speed of the upper beam for 190 mm: 7 seconds
    • Maximum pressure force of the upper beam: 22,500 kp

  8. Back Gauge:

    • Operating speed of the back gauge: Approximately 24 seconds for a displacement of 1000 mm
    • Stroke of the back gauge: 1000 mm
    • Repeatability: 0.4 mm after a displacement of 1000 mm
    • Parallelism after displacement: 0.4 mm after a displacement of 1000 mm
