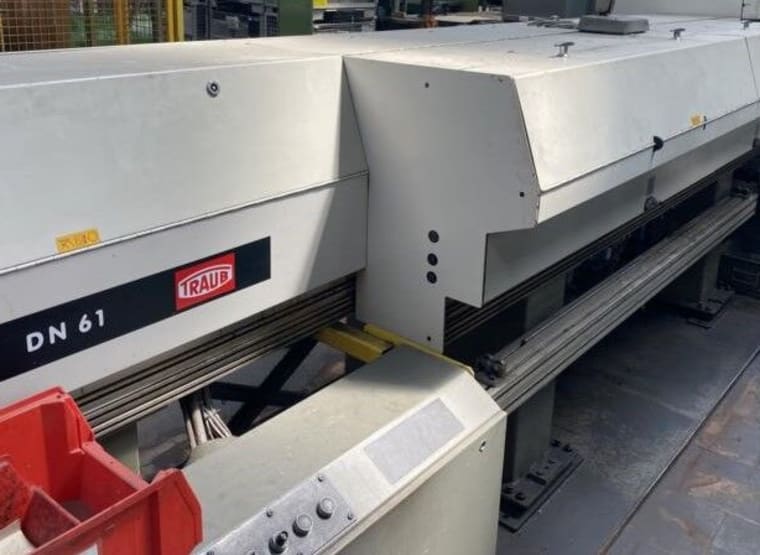

TRAUB STAMAG DN 61 Bar loading magazine

Technical details: Workpiece length - max. 4000 mm, bar diameter min. 18 / max. 63 mm, hexagonal bar diameter = 41 mm, square bar diameter = 25 mm, tolerance of the bar diameter h11, bar change time 20 sec., feed - return 4000 mm/min, Insertion speed 200 mm/sec., Replenishment speed 200 mm/sec., Drive motor 0.2 / 0.4 kW, Additional information: The Traub bar loading magazine type DN 61 feeds commercially available material bars of different lengths from a refillable memory in NC/CNC lathes (e.g. TRAUB TNC 65) so that the beginning of the bar is cut off before the first turned part is machined and the remaining piece is automatically removed from the main spindle. This loading magazine is completely tailored to the conditions and requirements of NC/CNC machines.
