Tip
lot no. 77
3,500 €
7 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
Closes in 1h 9m 09s
Closing time
3,500 €
Starting bid
Item details
- Name

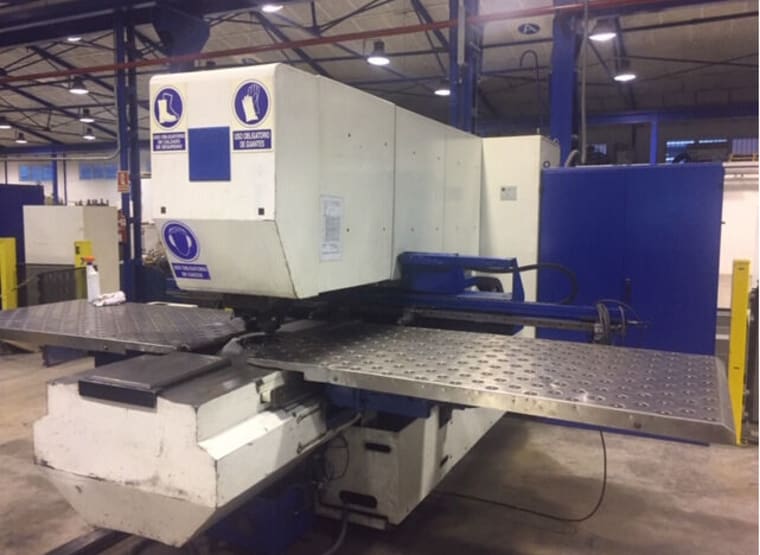

- TRUMPF TRUMATIC 240 Punching Machine
- Item number
- 869829
- Manufacturer
- TRUMPF
- Model / Type
- TRUMATIC 240
- Year of manufacture
- 1991
- Item available from
- Immediately
- Item condition
- Location
-
Spain, 28942 Fuenlabrada, Madrid
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 1,800.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Fuenlabrada, Madrid, loaded on truck
- Payment terms
- 100% payment prior to collection
- Security deposit
Technical details
- total power requirement
- 23 kW
- weight approx.
- 9,000 kg
- Approx. Onsite Dimension. (l x w x h)
- 3,500 x 2,200 x 2,200 mm
Item description
- Serial number : 030247
- Max. punching power: 250kn
- Bosch Trumagraph CC300 numerical control
- Working area X-axis: .2000mm
- Working area Y-axis: 1000mm
- Simultaneous speed 75m/min:
- X vel.max 60m/mm
- Y vel.max 45m/mm
- Max. number of strokes: 500 1/min
- Max. workpiece weight: 100Kg
- Max. thickness: 6,4mm
- Max. punching diameter: 76,2mm
- Equipment with safety barrier
- 10 tooling positions (tooling not included)
- 360° rotation
- Automatic tool changer
- Chip suction system
Automatic translation
Auction details
- Auction name
- Metalworking Machinery Selection (Spain)
- lot no.
- 77
- Documents
- Spec. Auction Terms
- Inspection
-
The exact location is available on request.
The items are in different locations (see item description)
Viewing by appointment only!
Do you have any questions in relation to the item? Please contact us.
