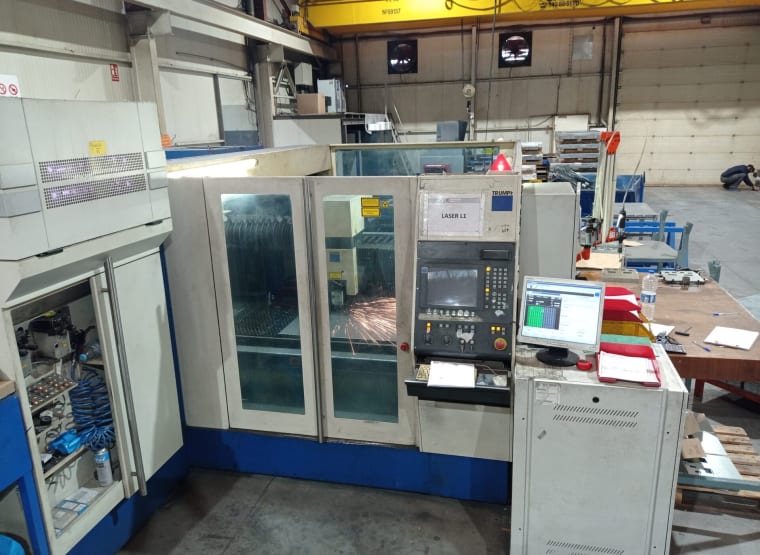

TRUMPF L3050 Laser Cutting Machine
Item details
- Name
- TRUMPF L3050 Laser Cutting Machine
- Item number
- 798981
- Manufacturer
- TRUMPF
- Model / Type
- L3050
- Videos
-
Video 1 - Year of manufacture
- 2003
- Item available from
- Immediately
- Item condition
- Location
-
Spain, 26323 Hormilla (La Rioja)
- Show on map
- All items at this location
Costs and benefits
- 6,000.00 €
- Shipping costs
- not included
- Delivery terms
- FCA Hormilla (La Rioja), loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- Read off operating hours
- 74,214 h
- laser capacity
- 5 kW
- control
- SINUMERIK840DI
- operating hours of laser
- 74,214 h
- weight approx.
- 12,500 kg
- Approx. Onsite Dimension. (l x w x h)
- 11,250 x 4,600 x 2,400 mm
Item description
Serial Number:E 6997
Machine Number: A023A0380
Laser: TLF 5000 TM
- Laser working Hours: 74214
- Laser Power: 5000w
- Travels:
- X: 3000 mm
- Y: 1500 mm
- Max. speed X : 100 m/min
- Max. speed Y: 60 m/min
- Max. speed Z: 60 m/min
- Simultaneous Speed X-Y Max. 60-85 mm
Important Note:
- Controller display need to be checked
- The Y-axis needs a new encoder, it is damaged;
- Vacuum pump is requesting replacement;
- Laser beam does not release, laser telegrams are not understood by the equipment;
- Pallet changer is not working appropiatelly, needs to be checked
- The machine has been dismantled and is stored according to photo 13.
