lot no. 4
9,900 €
47 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
14/02/24 14:03
Closing time
9,900 €
Starting bid
Item details
- Name

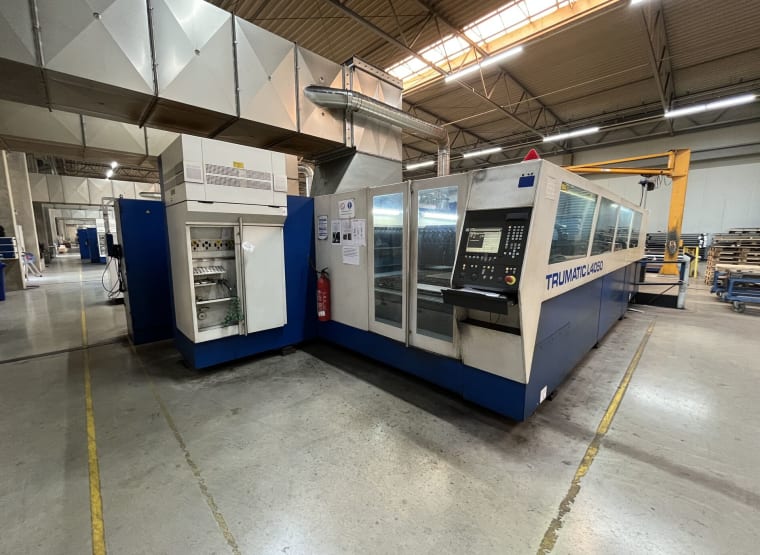

- TRUMPF TC L 4050 Laser Cutting Machine
- Item number
- 865085
- Manufacturer
- TRUMPF
- Model / Type
- TC L 4050
- Videos
-
Video 1 - Year of manufacture
- 2005
- Item available from
- immediately
- Item condition
- Location
-
Germany, 58256 Ennepetal
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 2,500.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Ennepetal, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- weight approx.
- 12,000 kg
- Approx. Onsite Dimension. (l x w x h)
- 12,000 x 6,000 x 2,430 mm
Item description
- serial no.: A0250A0190
- laser power: 6000 W
- working range (X x Y): 4000 x 2000 mm
- Z-axis (DIAS): 100 mm
- Max. sheet thickness:
- construction steel: 25 mm
- stainless steel: 20 mm
- aluminium: 12 mm
- Max. workpiece weight: 1800 kg
- Max. axes speed:
- axis parallel: 200 m/min
- simultaneous: approx. 300 m/min
- Max. axis acceleration : 16 m/s²
- precision:
- min. programmable path measurement: 0,001 mm
- position deviation: 0,1 mm
- middle position spread width: 0,03 mm
- with TRUMPF CNC-control system SIEMENS SINUMERIK 840D
- consumption values of laser:
- Laser Gas CO2: 1 L/min
- N2: 6 L/min
- He: 13 L/min
- with technical documentation
- attention: Transport will probably have to be on a truck with excess width as well as a standard truck.
- see also video
