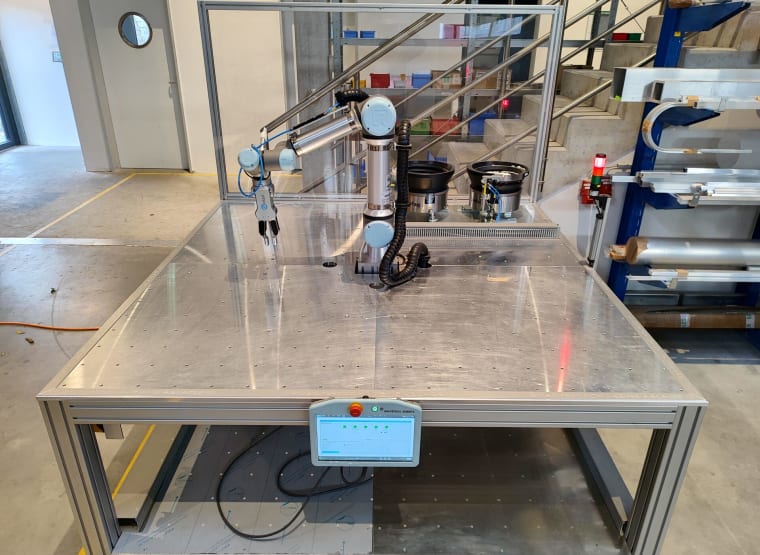

UNIVERSAL ROBOTS UR 5-e Industrial Robot with Controller
Top lot
lot no. 1
12,000 €
5 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
28/02/24 14:00
Closing time
12,000 €
Starting bid
Item details
- Name
- UNIVERSAL ROBOTS UR 5-e Industrial Robot with Controller
- Item number
- 889623
- Manufacturer
- UNIVERSAL ROBOTS
- Model / Type
- UR 5-e
- Videos
-
Video 1 - Year of manufacture
- 2019
- Item available from
- immediately
- Item condition
- Location
-
Germany, 14554 Seddiner See
- Show on map
- All items at this location
Costs and benefits
- 18 %
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Seddiner See, free on truck
- Payment terms
- 100% payment prior to collection
Technical details
- Approx. Onsite Dimension. (l x w x h)
- 1,850 x 1,800 x 1,500 mm
- weight approx.
- 600 kg
Item description
- Six-link robot arm with a working radius of 850 mm
- incl. bowl feeder
- Load capacity: 5 kg
- Rotating robot joints: max. 180 degrees/s (tool approx. 1m / sec.)
- Repetition accuracy: 0.03 mm
- Force sensor with accuracy 4N / 0.3 Nm
- Power consumption: 250 W
- Operating temperature: 0-50°
- Humidity: 90% RH
- Robot cleanroom class: ISO 5
- Controller cleanroom class: ISO 6
- Low-noise
- Footprint: 149 mm
- Degrees of freedom: 6 rotating joints
- Controller size (WxHxD): 475 mm x 423 mm x 268 mm
- TCP/IP - Modbus, Profinet, Ethernet/IP
- I/O ports in the controller: 16+4 digital on, 16 digital off, 2 analog on, 2 analog off
- I/O ports in the tool: 2 digital on, 2 digital off, 2 analog on, UART (RS485)
- I/O power supply: 24 V 2000 mA in the tool; controller 12 V/24 V 2000 mA in the tool
- 6 m cable between robot and control cabinet
- 4.5 m cable between touchscreen and control cabinet
- Programming: graphic user interface
- Touchscreen 1280x800 pixels
- Certificates: EN ISO 13849-1, Cat 3, PLd, EN ISO 10218-1
