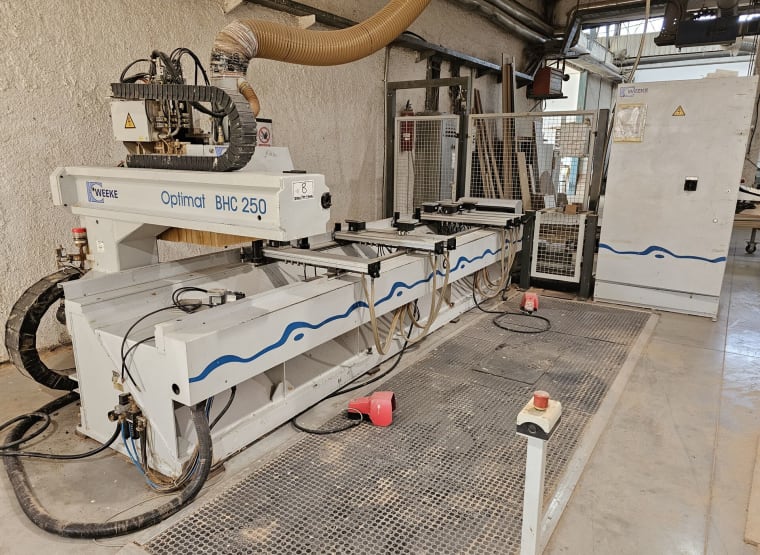

WEEKE OPTIMAT BHC 250 CNC Machining Centre
Top lot
lot no. 5
3,350 €
3 Bids 51 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
Closes in 1d 23h
Closing time
3,350 €
Current highest bid
Item details
- Name
- WEEKE OPTIMAT BHC 250 CNC Machining Centre
- Item number
- 849514
- Manufacturer
- WEEKE
- Model / Type
- OPTIMAT BHC 250
- Year of manufacture
- 2004
- Item available from
- immediately
- Item condition
- Location
-
Serbia, 22208 Mandjelos
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 750.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Mandjelos, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- vacuum pump
- 40 m³/h
- serial number
- 0-250-04-2204
- toolchanger positions
- 5
- total electrical load
- 15 kW
- x-motion
- 3,185 mm
- y-motion
- 1,080 mm
- z-motion
- 135 mm
- path-feed rate max. X-axis
- 60 m/min
- path-feed rate max. Y-axis
- 50 m/min
- path-feed rate max. Z-axis
- 20 m/min
- control
- HOMATIC 2000
- software
- woodWOP
- Approx. Onsite Dimension. (l x w x h)
- 5,000 x 1,700 x 2,000 mm
- weight approx.
- 3,000 kg
Item description
- serial number: 0-250-04-2204
- control: HOMATIC 2000
- software: woodWOP
- max. workpiece thickness: 50 mm
- table dimensions: 2750 x 900 mm
- travels:
- X-axis: 3185 mm
- Y-axis: 1080 mm
- Z-axis: 135 mm
- rapid traverse rate:
- X-axis: 60 m/min.
- Y-axis: 50 m/min.
- Z-axis: 20 m/min.
- spindle speed range: 1250 - 18000 rpm
- spindle power: 4.5/6 kW
- toolholder: HSK F-63
- toolchanger positions: 5
- compressed air required: 7 bar
- air pressure consumption: 100 - 200 l/min.
- vacucum pump capacity: from 40 m3/h
- diameter central suction connector: 160 - 200 mm
- min. suction air speed: 28 m/min.
- total connected load: 15 kW
