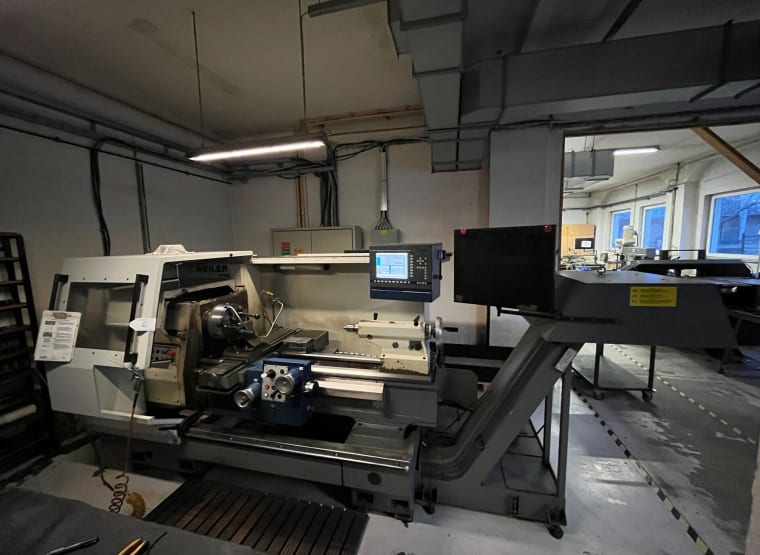

WEILER E50 X1000 CNC Lathe

Technical Data

• Distance between centres mm 1,000
• Swing over bed mm 570
• Swing over cross slide mm 340
• Cross slide travel mm 340
• Width of bed mm 350
• Drive power at 60 %/100 % duty cycle kW 20/17
• Max. torque at spindle Nm 1,300
• Spindle nose size acc. to DIN 55027 size 8 (11)
• Spindle bore mm 83
• Spindle diameter in front bearing mm 120
• Speed range min-1 1-2,500
• Rapid traverse rate Z/X m/min 10/5
• Feed range mm/rev 0.001-50
• Thread cutting range mm 0.1-1,000
• Tailstock quill diameter mm 80
• Tailstock quill taper MT 5
• Weight approx. kg 3,800
