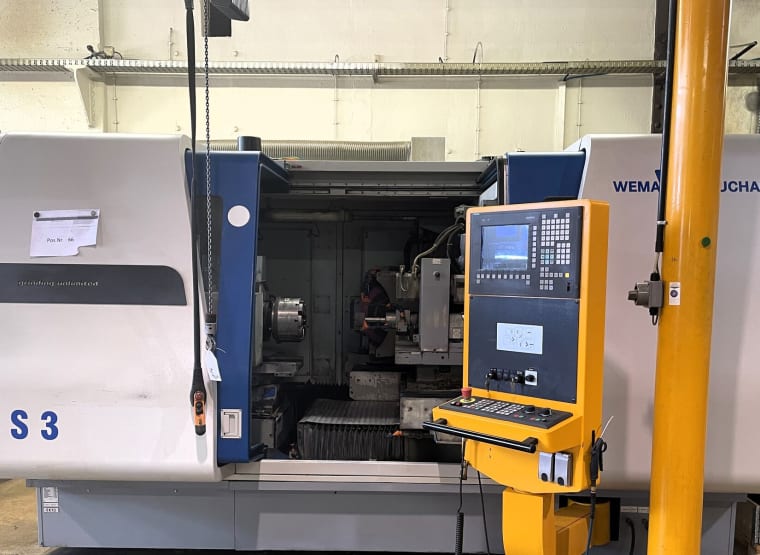

WEMA GLAUCHAU SU 3-R Cylindrical Grinder
Item details
- Name
- WEMA GLAUCHAU SU 3-R Cylindrical Grinder
- Item number
- 851114
- Manufacturer
- WEMA GLAUCHAU
- Model / Type
- SU 3-R
- Documents
- WEMA_SU3_R_Nr._330025.pdf
- Videos
-
Video 1 - Year of manufacture
- 2013
- Item available from
- immediately
- Item condition
- good, under power
- Location
-
Germany, 40724 Hilden
- Show on map
- All items at this location
Costs and benefits
- Shipping costs
- not included
- Delivery terms
- EXW Hilden, ex foundation, unpackaged
- Payment terms
- 100% payment prior to collection
Technical details
- control
- SIEMENS Sinumerik 840 D sl
- weight approx.
- 15,000 kg
- Approx. Onsite Dimension. (l x w x h)
- 7,500 x 3,000 x 2,500 mm
Item description
WEMA GLAUCHAU Grinding Centre for internal and external machining
Machine number and Control
Workpiece spindle unit (U/81/L-adjustment)
Machine number and Control
- Serial number: 330025
- Control: SIEMENS Sinumerik 840D sl
Workpiece spindle unit (U/81/L-adjustment)
- Travel (U-axis): 470 mm
- Swivel angle (B1 axis with longitudinal adjustment): -1° / +12°
- Swivel angle (B 1-axis workpiece spindle unit): -20° / +30°
- Manual longitudinal adjustment of workpiece spindle (L-adjustment): 470 mm
- Drive power of the workpiece spindle: 3.8 kW
- Speed (infinitely variable): 1 - 895 rpm
- Spindle head size: A5 according to DIN 55026
- Through hole: 55,5 mm
- Max. workpiece diameter: 400 mm
- Max. spindle head load: 200 kg
- Centre height over swivel bridge: 200 mm
- Traverse path Z1 axis: 470 mm
- Travel X1-axis: 200 mm
- Drive power S1/S2: 3.5 kW
- Mounting hole grinding support S1/S2: Ø100 mm
- Mounting length of bench grinder S1/S2: 80-60-80 mm
- Grinding diameter and depth max.: 300 mm
- Grinding wheel dimensions max.: Ø250 x 50 mm
- Traverse path Z2-axis: 470 mm
- Traverse path X2-axis: 325 mm
- Drive power external grinding spindle: 16.5 kW
- Locating hole for sanding block: Ø120 mm
- Mounting length of sanding block: 222 mm
- Max. grinding diameter and length: 400 mm
- Grinding wheel dimensions max.: Ø500 x 50 x 127 mm
Automatic translation
