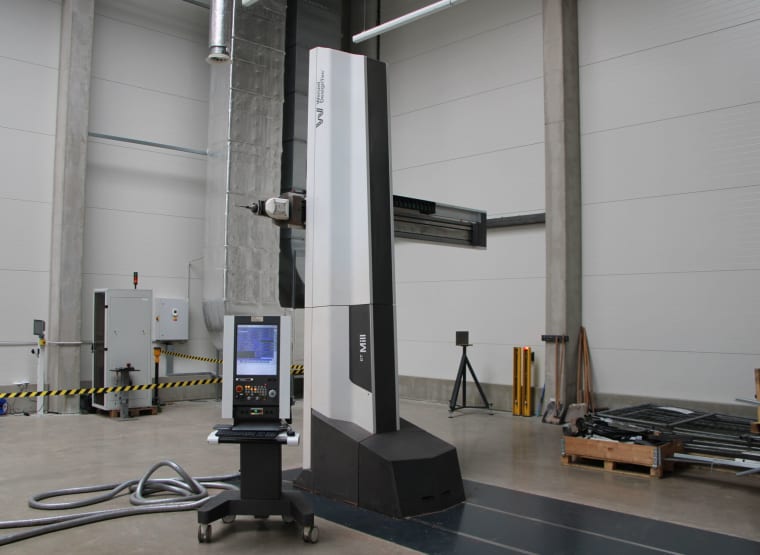

WENZEL DT-Mill High-Performance Milling Machine
Item details
- Name
- WENZEL DT-Mill High-Performance Milling Machine
- Item number
- 821394
- Manufacturer
- WENZEL
- Model / Type
- DT-Mill
- Documents
- WENZEL_DT-Mill_High-Performance_Milling_Machine_YOM_2019_1.pdf WENZEL_DT-Mill_High-Performance_Milling_Machine_YOM_2019_2.pdf WENZEL_DT-Mill_High-Performance_Milling_Machine_YOM_2019_3.pdf
- Videos
-
Video 1 Video 2 Video 3 Video 4 - Year of manufacture
- 2019
- Item available from
- immediately
- Item condition
- Location
-
Czech Republic, 293 01 Mlada Boleslav
- Show on map
- All items at this location
Costs and benefits
- 13,500.00 €
- Shipping costs
- not included
- Delivery terms
- FCA Mlada Boleslav, loaded on truck
- Payment terms
- 100% payment prior to collection
- tax / deposit
Technical details
- Approx. Onsite Dimension. (l x w x h)
- 25,000 x 5,150 x 4,000 mm
- weight approx.
- 28,000 kg
Item description
- serial number: 19121002
- control: FIDIA
- travels:
- X-axis: 20950 mm
- Y-axis: 1780 mm
- Z-axis: 3090 mm
- A-axis: 120°
- B-axis: 220°
- max. feed rate: 40 m/min.
- creep feed rate: to a maximum of 2 m/min.
- spindle power: 11 kW
- max. spindle speed: 18000 rpm
- tool holder: HSK63
- turntable diameter: 2300 mm
- max. load capacity turntable: 5000 kg
- please also have a look at the videos and the PDF documents of this machine
